Citrus Juice Machine

Citrus juice machine is one of the hot products of Tianzhong Machinery. This commercial juicer machine is specially designed to extract juice from citrus fruits, including oranges, lemons, limes, passion fruits, kumquats, and more. It is capable of handling fruits with diameters ranging from 10 to 110 mm. And the processing capacity ranges from 1 to 3 tons/h. Below are more parameters for your reference.

Citrus Juicer Machine Specifications

Models DG-300 DG-600 DG-800
Processing Capacity 1 t/h 2 t/h 3 t/h
Power 1.5 kW 2.2 kW 3.0 kW
Dimensions 1,250×800×1,450mm 1,250×1,200×1,450mm 1,250×1,400×1,450mm
Weight 380kg 580kg 780kg

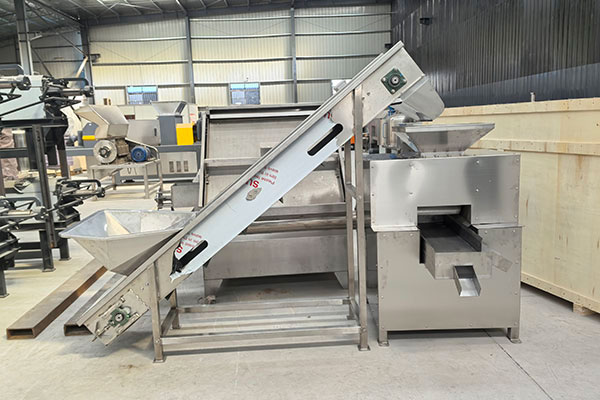

Citrus Juice Machine
Commercial Citrus Juice Machine
Roller Citrus Fruit Juicer
Roller Citrus Fruit Juicer

Key Features of Citrus Juicer Machine

  • Our citrus juice machines are made from food-grade stainless steel, SS304 or SS316, which ensures food safety and hygiene.
  • High efficiency and high processing capacity. Our machine can quickly process 1 to 3 tons of citrus fruits per hour.
  • Stainless steel material also makes the machine easy to clean and also offers great durability.
  • Wide applications. This machine is suitable for citrus fruits with diameters of 10-110mm, including kumquats, limes, lemons, oranges, grapefruits, etc.

Working Principle

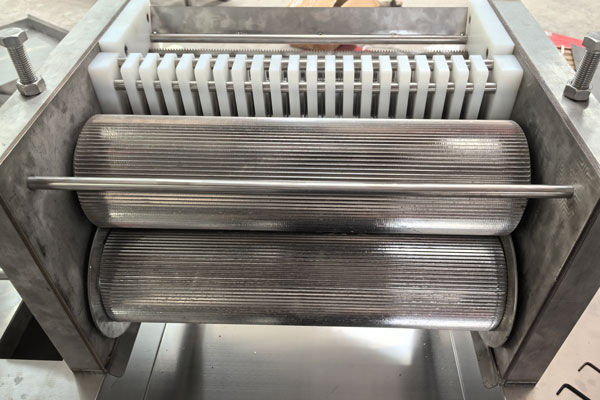

The citrus juice machine consists of several essential components, including three press rollers, two knife rollers, a feeding hopper, a juice outlet, a peel collector, a frame, and a power transmission system. Here’s how it works:

1. Feeding: Feed the citrus fruits into the machine directly and there is no need to peel or sort the fruits in advance.

2. Juice Extraction: The fruits will pass through the knife rollers, where they are gently crushed and broken. Subsequently, the crushed fruits enter the space between the press rollers for juice extraction. The peel is efficiently separated and collected in the peel collector, while the juice and some pulp flow out through the juice outlet.

Apart from the transmission components, the entire machine is constructed from high-quality stainless steel, ensuring durability and hygiene. Below is a video for your reference.

Applications of Commercial Citrus Juicer

This versatile machine is suitable for extracting juice from a wide variety of citrus fruits, including kumquats, lemons, oranges, among others. It is also used to process passion fruits, etc. Its unique design allows for direct juice extraction without peeling or sorting the fruits in advance.

Usage and Maintenance Tips

To ensure the optimal performance and longevity of the industrial juice machine, follow these usage and maintenance guidelines:

1. Tighten all bolts and screws on the machine regularly.
2. Keep the machine clean by regularly cleaning both its interior and exterior.
3. Before use, check the rotation direction of the mixing shaft and run the machine for a minute to confirm proper functioning.
4. Feed the fruits evenly for continuous production, and clean the machine thoroughly after each use to maintain hygiene.
5. Periodically inspect and lubricate bearings, gears, and sprockets, and add lubricating grease as needed.

Commercial Citrus Juicer
Commercial Citrus Juicer

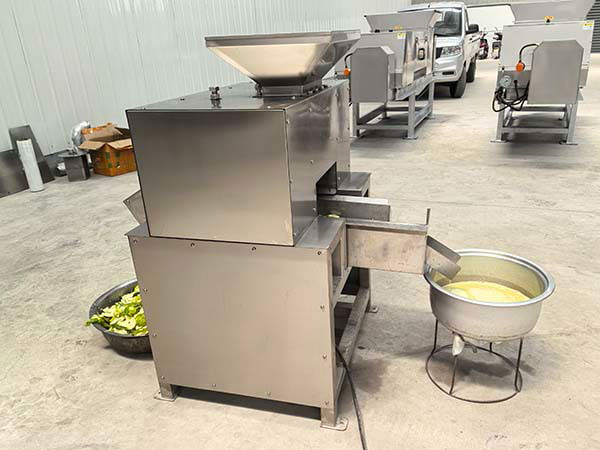

Industrial Citrus Juice Machine
Industrial Citrus Juice Machine

Advantages of Citrus Juice Extractor Machine

The industrial citrus juicer offers several advantages and distinctive features:

1. Versatility: It can extract juice from a wide range of citrus fruits, including oranges, lemons, limes, and passion fruits, accommodating diameters from 10 to 110mm. This versatility makes it suitable for various citrus fruit processing needs.

2. Durable Construction: Our industrial citrus juicer is constructed from high-quality stainless steel (SS304/SS316), ensuring its durability and longevity. It also ensures hygiene, as it is easy to clean and resistant to corrosion.

3. User-Friendly: Operating the machine is straightforward. Users only need to plug it in, feed fruits into the hopper, and let it do the work. Then you will get the juice and peels separately. It is very easy to operate.

4. No Pre-Peeling or Sorting Required: One of the standout features of the citrus juicer machine is that it eliminates the need for peeling or sorting fruits in advance. Users can simply place whole fruits, regardless of size or condition, into the feeding hopper. This feature significantly reduces preparation time and labor, making it a highly convenient option for juice extraction.

Conclusion

Tianzhong Machinery offers high-quality juicer equipment and solutions for commercial and industrial uses. We have various types of juicer machines to extract juice from different fruits and vegetables. Except for the citrus juicer machine, we also have passion fruit juice machine, which can remove the seeds and peels of passion fruits. As a one-stop solution supplier, we also provide fruit and vegetable washing machines, sorting machines, crushers, etc. for your juice production needs. No matter you need a single juice making machine or a whole juice production line, you can trust Tianzhong Machinery. Welcome to contact us for more details!
