Sesame Grinding Machine

Sesame grinding machine is designed for grinding sesame seeds into a smooth, creamy paste, known as tahini. Tahini is a popular ingredient and finds common usage in dishes like hummus, baba ganoush, and various sauces. Tianzhong Machinery proudly offers colloid mill machines for tahini production, boasting a processing capacity ranging from 60 to 4,000 kg/h.

Our colloid mill machines are not limited to tahini; they excel in the production of various pastes, including but not limited to peanut butter, chili sauces, cocoa paste, and more. Furthermore, Tianzhong Machinery also provides solutions by providing related equipment and custom designs for the entire sesame paste production line. Welcome to contact us for more details!

Sesame Grinding Machine
Sesame Grinding Machine
Tahini Making Machine
Tahini Making Machine

Specifications of Sesame Grinding Machine

Model JMS-80 JMS-110 JMS-130 JMS-160 JMS-180 JMS-210 JMS-240 JMS-300
Fineness 50-200 mesh
Capacity(kg/h) 60-80 100-200 300-500 500-600 700-800 1,000-1,200 1,200-1,500 3,000-4,000
Power(kW) 4 7.5 11 15 18.5 30 45 75
Voltage(V) 380 380 380 380 380 380 380 380
Weight(kg) 150 175 285 300 375 700 920 1,300
Dimension(mm) 600*410*930 700*430*1,000 990*440*1,000 1,000*460*1,050 1,000*490*1,100 1,260*600*1,230 1,330*630*1,280 1,440*680*1,420
Hopper Capacity 8L 8L 14L 14L 14L 24L 24L 32L
Rotor Diameter 80mm 110mm 130mm 160mm 180mm 210mm 240mm 300mm
Rotary Speed 2,890 r/min 2,900 r/min 2,930 r/min 2,930 r/min 2,930 r/min 2,950 r/min 2,970 r/min 2,970 r/min

Our team is ready to help you find solutions tailored to your specific needs.

Applications of Sesame Grinding Machine

A sesame grinding machine finds wide range of applications, especially in the food industry. In addition to tahini or sesame paste, this machine can be used to grind other nuts to produce nut butters, like peanut butter, almond butter, cashew butter and cocoa paste. It is also popular in making sauces and dressings, peanut milk, cream, jams, fruit juices, bone or meet mud, etc. We will provide different designs of stator and rotor for different materials.

Applications of Cocoa Bean Grinder
Uses of Sesame Paste Machine

Sesame Paste Production Line

The sesame paste production line is a comprehensive system designed for the efficient and quality production of sesame paste, a popular and versatile ingredient in various culinary applications.

Production Process: Cleaning — Drying — Feeding — Roasting — Cooling — Coarse Grinding — Fine Grinding — Blending — Cooling — Deaeration — Filling

Below is a video for your reference. And you can find more videos from our Youtube.

Main Equipment

The tahini production line is similar to peanut butter production line. It consists of some key equipment, including sesame cleaning machine, roasting machine, lifter, cooling belt, sesame grinder mills, mixing tank, paste pump, vacuum tank, and filling machine, etc. Below let’s overview the role of each equipment.

Sesame Paste Production Line
Sesame Paste Production Line

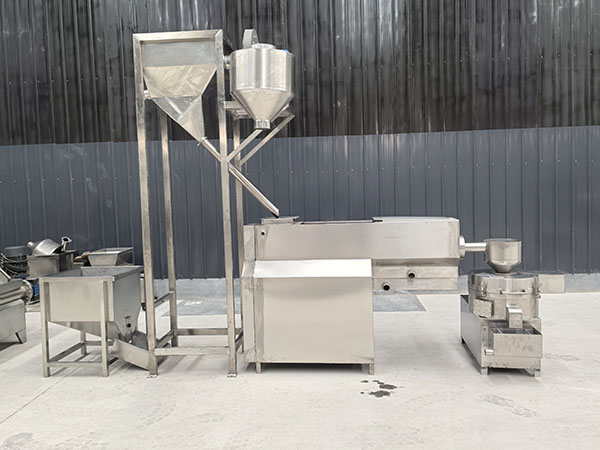

1. Sesame Cleaning Machine

This equipment is designed for cleaning sesame seeds. It consists of power, transmission part, spiral stirring part, cleaning container, and discharging device. This design allows the sesame seeds to be thoroughly cleaned as they are moved through the machine.

2. Dryer

The dryer is used to reduce the moisture content of the washed sesame seeds. After drying, the water content is about 20-22%, which will effectively reduce subsequent roasting costs.

3. Sesame Roasting Machine

This machine aims to roast sesame seeds to enhance the flavor, aroma, and color of sesame paste. At Tianzhong Machinery, it offers versatility with multiple heating options, including electric, gas, and coal, catering to different production needs.

4. Cooling Belt

Utilizes a fan system to extract heat, cooling roasted sesame seeds effectively.

Sesame Roasting Machine
Sesame Roasting Machine
Sesame Grinding Machine
Grinding Mills

5. Sesame Paste Grinding Machine

This colloid machine is capable of efficiently crushing, emulsifying, homogenizing, and tempering sesame seeds, resulting in a fine sesame paste. We often use two colloid grinders together for coarse grinding and fine grinding to improve the fineness of sesame paste.

6. Mixing Tank

A versatile component used for blending and mixing various ingredients such as milk, sugar, and other elements.

7. Vacuum Tank

Employed to eliminate gases from the sesame paste, this machine ensures the removal of unwanted air, contributing to the overall quality and shelf life of the product.

8. Paste Filling Machine

This machine is designed to efficiently and accurately fill the sesame paste into containers.

Key Features

1. Streamlined Workflow: The production line follows a seamless workflow, enhancing overall efficiency.
2. High Automation: Each component boasts high automation, reducing the need for manual intervention and labor costs.
3. User-Friendly: Simple operation and ease of use characterize the equipment, facilitating hassle-free management.
4. Easy Maintenance: The straightforward structure of the equipment simplifies maintenance and upkeep.
5. Product Variety: The line accommodates the production of various nut butter, catering to a wide range of applications.
6. Food Hygiene and Safety: Materials in contact with sesame paste are food-grade stainless steel.
7. Custom Design: Tianzhong Machinery offers both complete production line and the equipment separately. You can choose the equipment according to your needs and budget. Besides, we will provide custom layout design on the basis of your workshop.

Colloid Mill Machines for Sale
Sesame Paste Machines
Sesame Grinding Machine

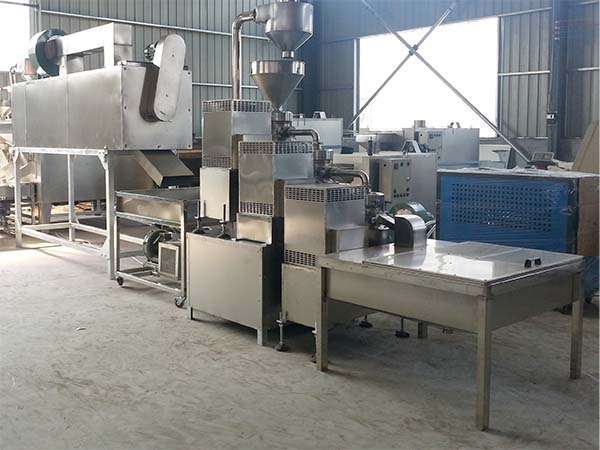

Tahini Grinders


Tianzhong Machinery takes pride in offering a diverse range of sesame paste machines, which serve as the core part of tahini production line. Our various models are designed with different processing capacities ranging from 60 to 4,000 kg/h. This ensures that our machines are suitable for both small-scale and large-scale production operations. Besides, we also provide the related equipment for tahini production, from sesame cleaning machine to paste filling machine. Welcome to contact us for more details!
