Passion Fruit Juice Machine

Passion fruit juice machine is designed to extract juice from passion fruits while peeling and deseeding the passion fruits. At Tianzhong Machinery, we have two types of passion fruit juice extractor machines to choose from. The GZJ juicer is for extracting juice without seeds and peel; while the DGQJ series can separate juice (pulp) and peel. Each of them is crafted from high-quality food-grade stainless steel, guaranteeing food hygiene and durability. Below are more parameters for your reference.

GZJ-1 Passion Fruit Juicer

This juicer machine is specially designed for passion fruits. It separates the peel and seeds while squeezing out the juice. If changing the internal structure of this machine, it can be used to extract seeds from tomatoes, watermelons, and peppers.

Model GZJ-1
Power 2.2 kW
Processing Capacity 0.8-1t/h
Dimension 1,900*850*2,260mm
Weight 650kg

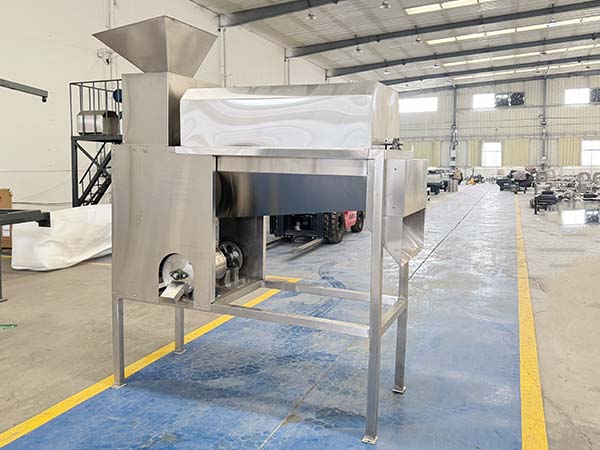

GZJ Passion Fruit Juice Machine
GZJ Passion Fruit Juice Machine
GZJ Design
Passion Fruit Juicer

Working Principle

The machine mainly comprises a feed hopper, a crusher, a separation drum, a seed separation cylinder, a transmission system, a frame, etc. It can efficiently remove seeds and peel from passion fruits while extracting juice. Let’s overview how it works.

1. Feeding and Crushing
Passion fruits are fed into the machine through the feeding port, where they will undergo the crushing process through a crusher inside the machine.

2. Separation

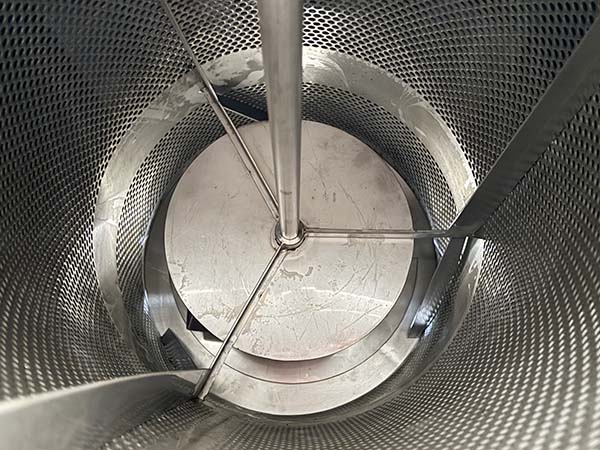

Subsequently, the crushed fruits enter the separation cylinder, where the juice, pulp and peel are separated.

3. Peel Discharge
The separated peel is then discharged through the peel outlet; while the extracted juice and pulp flow into the juice collection tank.

4. Seed and Juice Separation
Equipped with a silicone scraper, the seed outlet separates the juice from the seeds. Then the seeds are then discharged through the seed outlet. While the juice, free from seeds and peel, flows from the juice outlet for further processing. Below is a video for your reference.

DGQJ Series Passion Fruit Juice Machine

This machine is suitable for peeling and juicing of pineapples, passion fruits, papayas, citrus fruits, and more. Below are more parameters for your reference.

Model DGQJ-0.8 DGQJ-1.6
Power 1.5 kW 3 kW
Processing Capacity 0.5-0.8 t/h 1-1.6 t/h
Dimensions 1,250*800*1,450mm 1,250*1,200*1,450mm
Weight 350kg 550kg

Note: The material contact parts and the frame are all made of SUS304 stainless steel.

DGQJ Passion Fruit Juicer.jpg
DGQJ Passion Fruit Juicer
DGQJ Series
Passion Fruit Juice Machine

This passion fruit juice machine mainly consists of peeling rollers, half-cut separation system, frame, juice hopper, peel discharge outlet, feeding hopper, transmission system, etc.
Working principle: Firstly, feed the fruits into the machine through the feed hopper. There is a crusher, where the passion fruits are cut into two halves. Then the materials are squeezed by the rollers. The peel comes out of the peel hopper, while the juice and pulp are discharged from the juice hopper. Moreover, the gap of the rollers can be adjusted according to the different types of fruits being processed. Below is a video for your reference.

GZJ VS DGQJ Passion Fruit Juice Machine

As mentioned, the GZJ juicer is specifically designed for passion fruits; while the DGQJ series passion fruit pulping machine is widely used to process various fruits, including passion fruits, papayas, citrus fruits, pineapples, etc. The main differences between them lies in the GZJ machine is able to separate peel, seed and juice from passion fruits. That is, the end products are pure juice, peel, and seeds. This equipment is not only a juicer, but also a peeler and seed extractor. However, the DGQJ only separates the peel from the juice, and the juice is with seeds. You can choose according to your requirements for the end products.

Juicer Machine for Passion Fruit
GZJ Juicer Machine
Passion Fruit Juice Machine
DGQJ Series Juicer


Tianzhong Machinery has various types of industrial juicer machines for sale, which can quickly extract juice from all types of fruits and vegetables. Besides, we also offer the related equipment used in a juice production line, such as the vegetable and fruit washing machine, to offer your turnkey solutions. Welcome to talk with our experienced team about your juicing production projects. We will provide you with the most cost-effective equipment according to your requirements.
