Screw Type Juice Extractor

Screw type juice extractor is designed for industrial and commercial use, catering to farms and juice producers. With a production capacity ranging from 0.5 to 2.5 tons per hour, screw press juicer from Tianzhong Machinery can process a variety of fruits and vegetables, including tomatoes, carrots, pineapples, apples, aloe vera, grapes, ginger roots, celery, and more. Moreover, it is also suitable for dewatering applications such as processing grape pomace, distillery and brewery spent grains, cassava residues, and more. Let’s overview the specifications below.

Specifications of Screw Press Juicer

Tianzhong Machinery offers a series of screw press extractors for sale. Below are more parameters for your reference.

1.5 Ton Screw Press Juicer
1.5 Ton Screw Press Juicer

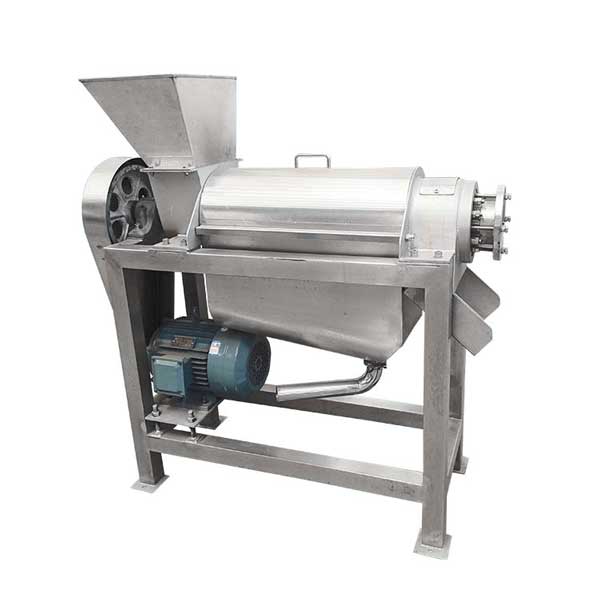

Screw Type Juice Extractor
Screw Type Juice Extractor
Spiral Juice Extractor
Spiral Juice Extractor
Model Processing Capacity Power Dimensions (mm) Speed of Screw (rpm) Mesh Opening Size
LZ-0.5 0.5 t/h 1.5 kW 910×385×810 Approx. 410 Φ0.3-2.0 mm, can be customized as per specific requirements
LZ-1.5 1.5 t/h 4.0 kW 1,300×500×1,330
LZ-2.5 2.5 t/h 11 kW 1,480×740×1,780
The following models are equipped with shredders.
PZJ-0.5 0.5 t/h 2.05 kW 910×500×1,250

Approx. 410


Φ0.3-2.0 mm, can be customized as per specific requirements
PZJ-1.5 1.5 t/h 5.1 kW 1,300×650×1,380
PZJ-2.5 2.5 t/h 12.5 kW 1,500×700×2,000

Please feel free to request a quotation and kindly provide us with details, for example, what you want to process and the desired capacity.

Screw Type Juice Extractor

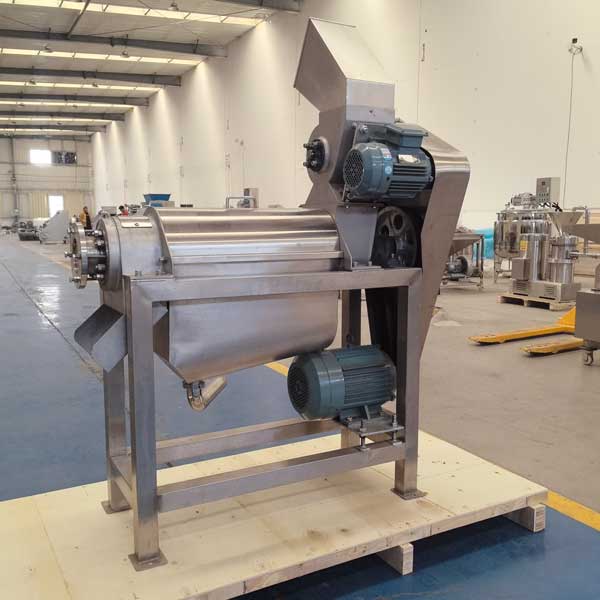

1.5 ton/h Screw Juicer Machine

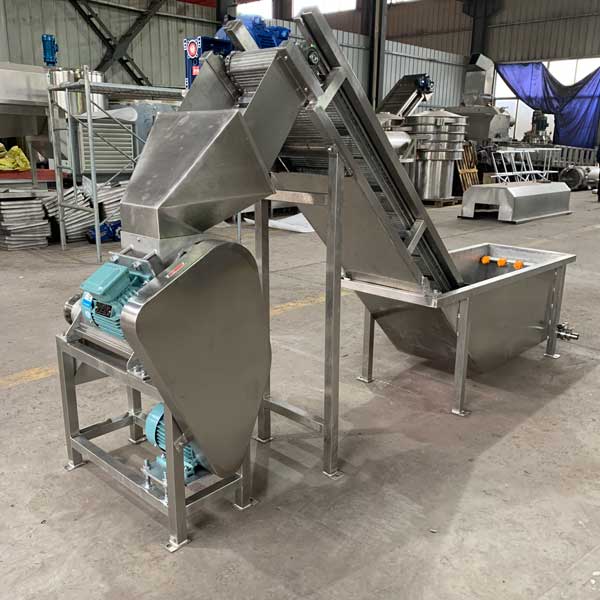

Screw Juicer Machine with Washing Machine
Screw Juicer with Washing Machine

What is a Screw Type Juice Extractor Used for?

The screw type juice extractor, also known as cold press juicer, is primarily used for extracting juice from fruits and vegetables. It operates at a slower speed and use a screw to crush and press the produce. After juice extracting, the moisture content in the material is about 60% (varies depending on the material).

At Tianzhong Machinery, our screw press juicer is able to process up to 50 tons of materials per hour. It is highly versatile and finds applications in various industries, particularly suitable for industrial and commercial use. Below is a list of the suitable materials for your reference.

1. Fruits: Screw juice machine is an ideal choice for juicing various fruits, including apples, grapes, berries, pears, and more.

2. Vegetables and Leafy Greens: It is effective in juicing vegetables such as carrots, cucumbers, celery, spinach, wheatgrass, and other leafy greens.

3. Herbs: This machine is also suitable for processing certain herbs like mint, parsley, and cilantro.

4. Root Vegetables: Harder vegetables such as beets and ginger roots can be processed effectively.

5. Fibrous Materials: The slow and squeezing action of the screw can handle fibrous materials well, making it suitable for juicing tough and fibrous produce. It is also popular in brewing, paper pulp, and other industries for solid-liquid separation purposes.

How Does a Screw Type Juice Extractor Work?

The screw type juice extractor consists of a drive system, feed hopper, screen, screw, juice container, and waste outlet. You can also employ a shredder or crusher to cut fruits and vegetables into smaller pieces for easier processing. Materials enter the device through the feed hopper and screw auger. The screw rotates slowly to convey the materials against the screen, while squeezing out the juice and separating it from the solids. The juice is discharged through the outlet and collected into a container. While the dewatered materials move forwards and are discharged at the end of the screw. Below are videos for your reference. You can also find more videos from our YouTube.

Key Features and Benefits

Screw-type juice extractors operate at a slower speed and employ a different mechanism to produce juice. Here are some of its key features:

Low Operating Costs
The screw type juice extractor operates on the principle of physical compression dewatering and doesn’t require additional heat sources during the process. Moreover, our screw press juicer rotates at a very low speed, which makes it energy-saving.
Superior Juice Extraction
The screw-type mechanism of our juice extractor ensures maximum juice yield by efficiently squeezing fruits and vegetables. Besides, the slow rotational speed reduces the generation of heat during the juicing process, to preserve the natural flavor, color, and nutritional value of the juice.
Low Moisture
The residual moisture content in the extracted material is about 50%-60%, which will be different from different materials.
Versatile Application
The screw type juice extractor is highly versatile and can process a wide range of fruits and vegetables. Whether you're extracting juice from citrus fruits, berries, leafy greens, or other vegetables, you can rely on this machine.
Continuous Working and High Efficiency
The screw type juice extractor is designed to ensure continuous working, allowing for efficient and uninterrupted juice extraction process. Moreover, some parameters of our machine are adjustable to meet specific processing requirements, ensuring optimal juice quality and yield.
Excellent Wear and Corrosion Resistance
Critical components of our screw type juice extractor coated with wear-resistant layers, and the screw auger blades are fully welded, enhancing their durability. The screw and screen are constructed from 304 stainless steel to extend the equipment's service life.
Easy to Install, Clean and Maintain
Our extractor features a user-friendly design, allowing for quick disassembly and cleaning. We will also provide technical support and instruction manual for your ease of use.

Except for the juicer machine mentioned above, Tianzhong Machinery also offers screw press machine for juicing purpose, which is with higher processing capacity (up to 50 tons). This machine is versatile and can handle a wide range of materials, including fruits, vegetables, leafy greens, and wheatgrass. Below are some pictures and a video for your reference.

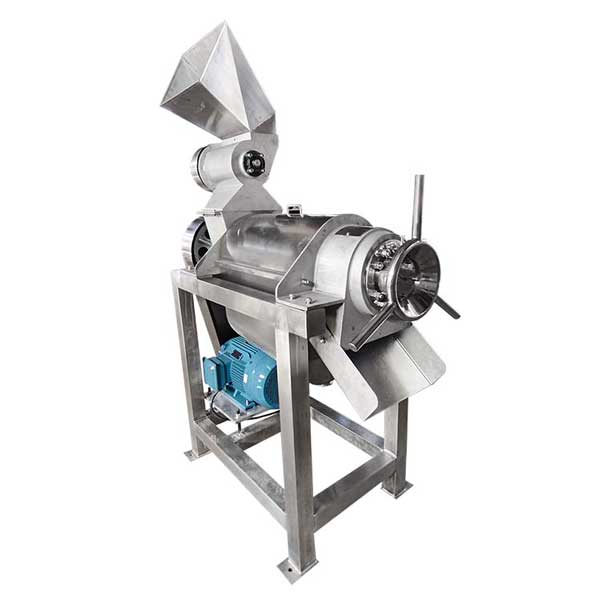

Screw Press Juice Extractor
Screw Type Juice Extractor
Screw Press Juicer to Thailand
Screw Press Juicer to Thailand


At Tianzhong Machinery, we take pride in manufacturing high-quality screw type juice extractors. Our machines offers reliable performance and excellent juice extraction efficiency. They are ideal for industrial and commercial applications in juice production and dewatering requirements. Over the years, we have helped hundreds of clients with their juicing projects all over the world. With rich experience, we keep updating our machines to exceed expectations. Our screw type juice extractor is backed by our commitment to quality, performance, and exceptional after-sales service. Contact us today to learn more about our screw press juicer, request a demo, or discuss your specific requirements.
