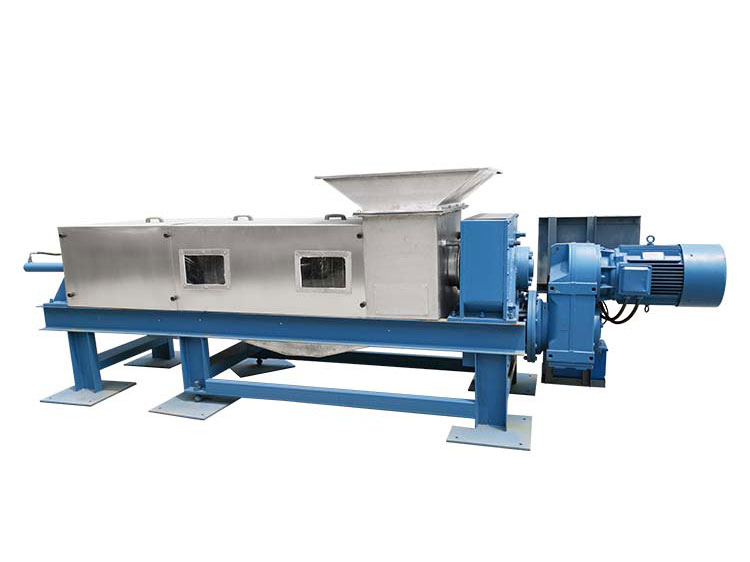

Single Screw Press

Single screw press is a highly versatile machine used in various industries that require solid-liquid separation process. At Tianzhong Machinery, our single screw press adopts variable screw diameter and tapered shaft design, making it lower cost and lower energy consumption. It finds wide application across various industries such as wastewater treatment, agriculture waste processing, pulp and paper industry, and processing herbal residues, fruit waste, and more. Additionally, it is also used for extracting juice from various fruits and vegetables, particularly those with a relatively low fiber content. Let’s review the equipment parameters of Tianzhong Machinery below.

Specifications of Single Screw Press

At Tianzhong Machinery, we have different models of screw press separators for sale. Below are more parameters for your reference.

TZ-5 Screw Press Machine
DYZJ-350 Screw Press Machine
TZ-10 Single Screw Press.jpg
Single Screw Press
TZ-20 Screw Separator
DYZJ-550 Single Screw Press
Model DYZJ-350 DYZJ-420 DYZJ-550 DYZJ-630 DYZJ-760
Motor Power 11KW 15KW 22KW 30KW 45KW
Hydraulic Power 1.5KW 1.5KW 1.5KW 2.2KW 2.2KW
Voltage 380V / 50HZ
Screw Diameter Φ350mm Φ420mm Φ550mm Φ630mm Φ760mm
Screen Opening Size 0.5/0.8/1/2/3/4/5mm or can be customized
Processing Capacity 2-3 t/h 4-5 t/h 7-8 t/h 10-12 t/h 16-18 t/h
Equipment Material Contact material 304 stainless steel
Equipment Weight 1,800kg 2,400kg 3,000kg 4,500kg 5,700kg
Dimensions 360*82*130cm 420*82*150cm 480*90*160cm 560*110*175cm 680*120*185cm

These machines can employ a single screw or double screws, which is mainly determined by the material to process. For materials with high fiber content, double screw press is recommended. While single screw press is more suitable for the materials with low fiber content. Before purchasing, you need to confirm the material characteristics and volume need to process.

Tapered Screw Press

Tapered screw press uses patented technology. It uses a variable diameter screw. Below are more parameters for your reference.

Model TZBJ-3 TZBJ-5 TZBJ-10 TZBJ-20
Power 5.5 kW 15 kW 18.5 kW 22 kW
Weight 780 kg 1,500 kg 2,240 kg 4,500 kg
Processing Capacity 2-3 tons 3-5T 8-10T 15-20T
Screw Diameter 200mm 300mm 400mm 600mm
Speed 32r/min 25r/min 21r/min 12r/min
Size(mm) 2,920*700*1,200 3,780*810*1,550 4,410*900*1,720 5,400*1,300*1,900
Single Screw
Single Screw
Tapered Screw
Tapered Screw

Applications of Single Screw Press

A single screw press can process a wide range of materials. Its primary function is to compress materials to extract liquids from solids. Here are some materials that can be processed with a single screw press.

1. Fruits and Vegetables: It is suitable for extracting juice from fruits and vegetables such as apples, grapes, grape skins, berries, oranges, carrots, tomatoes, cabbages, gingers, spinach, and more. It is also suitable for processing other fiber-containing waste fruits and vegetables for reducing the volume and weight for further disposal.

2. Biomass and Fibrous Materials: Single screw presses can process biomass materials like wood chips, sawdust, and agricultural residues, such as corn husk, straws, grass, etc.

3. Animal Manure: These presses can handle animal manure, such as cow dung, pig manure, poultry waste, duck manure, often for the purpose of dewatering the liquid manure.

4. Sludge and Pulp Dewatering: Useful for dewatering sludge, paper pulp, biogas slurry, etc. In addition, this machine is effective for dewatering various waste residues, such as herbal residues, brewers grains, sauce residues, coffee residues, etc. But the material should contain fibers with particle sizes larger than 1.5 mm. Please note that this machine is not suitable for materials that do not contain any fibers.

Overall, the single screw press machine is a versatile and efficient solution for separating and dewatering solid-liquid mixtures in various industries, especially in fruit juice extraction, processing animal waste and various waste residues. If you want more details, please feel free to contact us!

Working Process of Single Screw Press

The single screw press dehydrator features a single screw, offering continuous dewatering and effective shredding capabilities. The wet material is fed into the machine, and as the screw rotates slowly, it conveys the material towards the discharge end. By using force-feeding plate, it pushes the material forward and preventing it from adhering to the screw.
As the material is conveyed along the length of the screw, the pitch of the screw gradually decreases and the pressure increases. Then the liquid is squeezed out through the screen. The separated liquid is collected for further processing, while the dewatered solid continues moving along the screw to the discharge end.


In conclusion, the single screw press is a versatile and efficient solution for solid-liquid separation processes. Its continuous dewatering capabilities make it suitable for a wide range of materials, including fruits, vegetables, animal manure, agricultural wastes, paper pulp, spent grains, and more. At Tianzhong Machinery, we offer a diverse range of screw press machines for sale, capable of processing material volumes ranging from 0.2 to 50 tons per hour.

In order provide you with a customized solution that meets your specific requirements, we kindly request you to provide us with details regarding the material to process, material characteristics (fiber content), and the volume of material to process per day or per hour. Our team will offer you an ideal solution. Please feel free to contact us!
